HONDA
HERSTELLER VON AUFHÄNGUNGEN IN TAIWAN FÜR DEN GLOBALEN MARKT

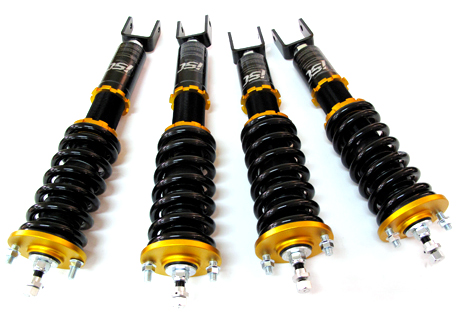

Tuning Gewindefahrwerk, Wir produzieren hochwertige Stoßdämpfer, Gewindefahrwerke, Tuningteile für Autoteile, Aufhängung für Performance Zubehör für Autos. Full Service stehen zur Verfügung. Führender Hersteller von Stoßdämpfern, Gewindefahrwerken, Tuningteilen für Autoteile, Aufhängung für Performance Zubehör für Autos und Luxusautos, Automobile.
| NO. | Jahr | Auto Model | Chassis | AUCH GENANNT | TOP MOUNT (●KISSENKUGEL) |
LINKLEISTE | DÄMPFER / STAB | Straßenkomfort / Sport | Rennen / Drift | Anfrage | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F | R | F | R | F (mm-kg) |
R (mm-kg) |
F (mm-kg) |
R (mm-kg) |
|||||||
| H001 | 88-91 | CIVIC 4_CR-X (16V) | ED_(rear fork) |  |
A | 204AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H001-1 | 88-91 | CIVIC 4_CR-X (J.P) | EF_(rear eye) | |
A | 204AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H002 | 92-95 | CIVIC 5 (J.P)(K6) | EG6_(rear eye) EG3/4 |
|
A | 204AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H003 | 96-00 | CIVIC 6 (K8) | EK (EK9,EK4,EK3,EJ6,EJ8, EJ9,EM1) |
|
A | 204AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H004 | 94-97 | Accord 5 (K7) | CD | Ascot Innova (E.U) | |
A | 204AF3/225 | 204AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H005 | 98-02 | Accord 6 (K9) (N.U.S) HG 7230 (C.H) |
CG (CG1/3/5、CG2/4/6) |
Accord_CH1 (E.U) | |
A | 204AF3/225 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H006 | 01-05 | CIVIC 7 (K10) | ES (ES1,ES2,ES3,EP3, EU1) |
 |
R | 280F2C/270 | 184AR2/225 | 180-10 | 135-10 | 180-12 | 140-12 | Anfrage | ||
| H007 | 98-02 | Accord SiR Accord Euro R |
CF4 & CL1 | Accord Wagon SiR FW_CH9 Accord Wagon SiR AW_CL2 Torneo (J.P) |
|
A | 204AF3/225 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H008 | 03-07 | Accord 7 | CL7 | Accord Euro (J.P)(E.U) | |
A | 264AF3/245 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H008-1 | 03-07 | Accord 7 Wagon | CM2 | Accord Euro (J.P)(E.U) | |
A | 264AF3/245 | 264AR2/265 | 180-12 | 200-8 | 180-14 | 200-10 | Anfrage | |
| H008-2 | 03-07 | Accord 7 Euro | CL9 | Accord Euro (J.P)(E.U) | |
A | 264AF3/245 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H009 | 95-01 | CR-V 1 | RD1 | |
A | 200AF3/225 | 244AR2/245 | 180-16 | 180-10 | 150-18 | 180-12 | Anfrage | ||
| H010 | 90-93 | Integra 1 | DA6 (DA5-DA9, DB1-DB2) |
|
A | 200AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H011 | 94-01 | Integra 2 (U.S) | DC2(rear fork) | |
A | 200AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H012 | 02-06 | Integra 4 | DC5 | |
R | 280MF3/270 | 184AR2/225 | 180-12 | 135-10 | 180-14 | 140-12 | Anfrage | ||
| H013 | 92-95 | CIVIC 5 (U.S) | EH,EJ1,EJ2 (rear fork) | |
A | 200AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H014 | 01-07 | STREAM | RN1/2/3/4/5 | |
R | 280MF2C/270 | 184AR2/225 | 180-12 | 140-12 | 180-14 | 140-12 | Anfrage | ||
| H015 | 01-06 | FIT / JAZZ (J.P) | GD2 & GD4 | OE | OE | 245L-10-180 | 300MF2/270 | 244AR1/290 | 180-6 | 190-3.4 KK0036 | 180-8 | 180-5G | Anfrage | |
| H016 | 01-06 | FIT / JAZZ (U.S) | GD1 & GD3 | OE | OE | 245L-10-180 | 300MF2/270 | 244AR1/290 | 180-6 | 190-3.4 KK0036 | 180-8 | 180-5G | Anfrage | |
| H017 | 94-01 | Integra 2_TYPE-R | DC2(rear eye) | |
A | 204AF3/225 | 204AR2/225 | 180-10 | 180-6 | 180-12 | 180-8 | Anfrage | ||
| H018 | 06-11 | CIVIC 8 (K12) | FD1 | |
OE | 280MF2C/270 | 264AR2/290 | 200-8 | 200-5.5 KK0021-1 | 180-10 | 160-10 KK0055 | Anfrage | ||
| H019 | 04-08 | ODYSSEY 3 | RB1 & RB2 (J.P) | |
OE | 204AF3/245 | 244AR2/245 | 180-14 | 180-12 | 180-16 | 180-14 | Anfrage | ||
| H020 | 00-09 | S2000 | AP1 & AP2 | |
A | 264AF3/245 | 204AR2/225 | 180-12 | 180-10 | 180-14 | 180-12 | Anfrage | ||
| H021 | 03-07 | ACCORD 7 (K11) (N.U.S) | CM5 & CM6 CM7 & CM8 (2-door) |
Inspire(J.P) | |
A | 264AF3/245 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H022 | 90-93 | ACCORD 4 (K5) | CB9、CE1、CF2 | |
A | 204AF3/225 | 204AR2/225 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | ||
| H023 | 07-UP | FIT / JAZZ (U.S) | GE6 & GE8 | OE | OE | 245L-10-180 | 280MF2/270 | 264AR42/290 | 180-6 | 200-3 KK0007 | 180-8 | 180-5G | Anfrage | |
| H024 | 08-UP | ACCORD 8_24TL (J.P)(E.U) ACCORD 8_24TL SPORT |
CU2 CW2 |
|
A | 244AF3/225 | 264AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | ||
| H025 | 07-11 | CR-V 3 | RE1/2/3/4/5/7 | A | OE | 280MF2C/270 | 184AR2/225 | 180-16 | 150-18 | 150-18 | 150-20 | Anfrage | ||
| H026 | 07-UP | CIVIC 8_TYPE-R | FD2 | |
OE | 280MF2C/270 | 264AR2/290 | 200-8 | 200-5.5 KK0021-1 | 180-10 | 160-10 KK0055 | Anfrage | ||
| H027 | 96-02 | CITY 3 | SX8 | A | A | 230MF2/250 | 244AR1/265 | 180-6 | 200-4 | 180-8 | 180-6 | Anfrage | ||
| H029 | 07-UP | STREAM | RN6 | |
A | 250~300L-M10 | 280MF2C/290 | 184AR2/225 | 180-8 | 115-10 | 180-10 | 120-12 | Anfrage | |
| H030 | 08-UP | ACCORD 8 (K13)(N.U.S) | CP2 & CP3、CS1 & CS2 | Inspire_CP3(J.P) | |
A | 244AF3/225 | 264AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |
| H031 | 09-UP | Spirior/ 思鉑睿 | |
A | 244AF3/225 | 264AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | |||
| H032 | 03-08 | CITY 4 / 思迪 | GD8 & GD9 | OE | OE | 245L-10-180 | 300MF2/270 | 244AR1/290 | 180-6 | 190-3.4 KK0036 | 180-8 | 180-5G | Anfrage | |
| H033 | 09-UP | CITY 5 / 鋒范 | GE6 & GE8 | Fit Aria | OE | OE | 245L-10-180 | 280MF2/270 | 264AR42/290 | 180-6 | 200-3 KK0007 | 180-8 | 180-5G | Anfrage |
| H035 | 95-99 | ODYSSEY 1 | RA1~RA5 | |
OE | 204AF3/225 | 204AR2/245 | 160-12 | 200-15 KK0064-1★ | 160-14 | 200-15 KK0064-1★ | Anfrage | ||
| H036 | 09-UP | ODYSSEY 4 | RB3 & RB4 (J.P) | |
OE | 204AF3/245 | 244AR2/245 | 180-14 | 180-12 | 180-16 | 180-14 | Anfrage | ||
| H037 | 91-05 | NSX | NA1 & NA2 | |
A | 244AF3/245 | 204AR2/225 | 180-10 | 180-12 | 180-12 | 180-14 | Anfrage | ||
| H038 | 06-11 | CIVIC SI | FA5 & FG2 | |
OE | 280MF2C/270 | 264AR2/290 | 180-8 | 200-5.5 KK0021-1; | 180-10 | 160-10 KK0055 | Anfrage | ||
| H039 | 92-96 | PRELUDE 4 | BA8/9、BB1-BB4 | |
A | 204AF3/225 | 294AR2/265 | 180-12 | 200-6 | 180-14 | 200-8 | Anfrage | ||
| H041 | 11-UP | CR-Z | ZF1 | OE | OE | 245L-10-180 | 280MF2/270 | 264AR42/290 | 180-6 | 200-3 KK0007 | 180-8 | 180-5G | Anfrage | |
| H043 | 99-03 | Inspire 3 | UA4 & UA5 | |
A | 204AF3/225 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | ||
| H044 | 99-03 | Inspire 4 | UC1 | |
A | 264AF3/245 | 244AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | ||
| H045 | 08-UP | Inspire 5 | CP3 | |
A | 244AF3/225 | 264AR2/245 | 180-12 | 180-8 | 180-14 | 180-10 | Anfrage | ||
| H046 | 02-06 | Mobile | GD2 & GD4 | OE | OE | 245L-10-180 | 300MF2/270 | 244AR1/290 | 180-6 | 190-3.4 KK0036 | 180-8 | 180-5G | Anfrage | |
| H047 | 07-UP | CIVIC 8_TYPE-R (EURO) | FN2、FK | |
OE | 280MF2C/270 | 264AR2/290 | 180-8 | 200-5.5 KK0021-1 | 180-10 | 160-10 KK0055 | Anfrage | ||
| H049 | 04-UP | Elysion | RR1-RR6 | A | OE | 244AF3/245 | 244AR2/265 | 180-14 | 200-12 KK0064-3 | 180-16 | 155-15 KK0064-2 | Anfrage | ||
| H051 | 12-UP | CR-V 4 | RM1 & RM4 | A | A | 245L-10-180 | 280MF2C/290 | 204AR2/245 | 180-10 | 180-16 | 180-12 | 150-18 | Anfrage | |
| H052 | 12-UP | CIVIC 9 (K14) | FB | |
OE | 260L-10-0 | 280MF2C/290 | 244AR2/265 | 180-8 | 170-6 KK0051 | 180-10 | 160-10 KK0055 | Anfrage | |
| H053 | 01-05 | Stepwgn | RF3-RF8 | |
OE | 280MF2C/290 | 204AR2/245 | 180-10 | 185-8 KK0064 | 180-12 | 150-15 KK0064-2 | Anfrage | ||
| H054 | 01-05 | Stepwgn | RG | |
OE | 280MF2C/290 | 204AR2/245 | 180-10 | 140-8 KK0063★ | 180-12 | 140-8 KK0063★ | Anfrage | ||
| H055 | 07-UP | N-ONE | JG1-2 | OE | OE | 280MF2/290 | 204AR1/245 | 160-6 | 150-4 KK-0066★ | 160-8 | 150-4 KK-0066★ | Anfrage | ||
| H056 | 07-UP | N-BOX | JG1-2 | OE | OE | 160-8 | 204AR1/245 | 160-6 | 150-4 KK-0066★ | 160-8 | 150-4 KK-0066★ | Anfrage | ||
| H057 | 03-08 | LIFE | JB5 & 7 | OE | OE | 280MF2/290 | 204AR1/245 | 160-6 | 150-4 KK-0066★ | 160-8 | 150-4 KK-0066★ | Anfrage | ||
| H058 | 99-03 | ODYSSEY 2 | RA6~RA9 | |
OE | 204AF3/245 | 244AR2/265 | 180-14 | 200-15 KK0064-1★ | 160-14 | 200-15 KK0064-1★ | Anfrage | ||
| H062 | 13-UP | ODYSSEY 5 | RC1-RC2 | |
OE | 270~320L-M12 | 300MF2C/290 | 264AR2/265 | 160-10 | 145-8 KK-0082★ | 160-12 | 145-8 KK-0082★ | Anfrage | |
| H063 | 13-UP | FIT / JAZZ (U.S) | GK | OE | OE | 280MF2/290 | 263AR42/260 | 180-6 | 210-3.5 KK0081-1★ | 160-12 | 210-3.5 KK0081-1★ | Anfrage | ||
- Camber Kissen Kugelhalterung
- Gewöhnliche Kissen Kugelhalterung
A - Aluminium halterung
R - Nur Eisen halterung
OE - Keine halterung
★ - Nur für das auto verwendet
A - Konische feder
G - Eierfeder
D - Unterschiedlicher Durchm. Frühling
